66 729 руб.

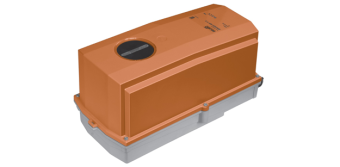

Артикул: GK24G-1
Наличие: По запросу.
В корзину
Отправить запрос



АртикулGK24G-1
Вспомогательные переключателиНет
Кабель1 м, 3 x 0.75 мм
Крутящий момент40 Нм
Питание24 В~/=
Площадь заслонки 8 м
ПрисоединениеУниверсальный захват
СерияGK_G
УправлениеОткр/Закр



Electrical data
Nominal voltageAC 24 V, 50/60 Hz / DC 24 V
Nominal voltage rangeAC 19.2 ... 28.8 V / DC 21.6 ... 28.8 V
Power consumption
In operation
At rest
For wire sizing

11 W @ nominal torque
3 W
21 VA (lmax 20 A @ 5 ms)
ConnectionCable 1 m, 3 x 0.75 mm2 (halogen-free)
Parallel operationYes (note the performance data)
Functional data
Torque
Inhibiting torque
40 Nm
40 Nm
Emergency setting position (POP)0 ... 100%, adjustable (POP rotary button) of maximum angle of rotation
Bridging time with voltage interruption2 s
Position accuracy±5%
Direction of rotationMotor
Emergency setting positionReversible with switch / Reversible with switch 0 ... 100%
Direction of rotationAt switch position 1 and 0, respectively
Manual overrideGearing latch disengaged with push button
Angle of rotationMax. 95°, can be limited at both ends with adjustable mechanical end stops
Running time
Motor
Emergency setting position

150 s / 90°
35 s @ 0 ... 50°C
Sound power level
Motor

Emergency setting position
53 dB (A) @ 90 s running time
52 dB (A) @ 150 s running time
61 dB (A)
Position indicationMechanical, pluggable
Safety
Protection classIII Safety extra-low voltage UL Class 2 Supply
Degree of protectionIP66 NEMA 4, UL Enclosure Type 4
EMCCE according to 2004/108/EC
CertificationCertified to IEC/EN 60730-1 and IEC/EN 60730-2-14 cULus according to UL 60730-1A and UL 60730-2-14 and CAN/CSA E60730-1:02
Mode of operationType 1.AA
Rated impulse voltage0.8 kV
Control pollution degree4
Ambient temperature–30 ... +50°C (actuator with built-in heater –40 ... +50°C)
Non-operating temperature–40 ... +80°C
Ambient humidity100% r.h.
MaintenanceMaintenance-free
Dimensions / Weight
DimensionsSee «Dimensions» on page 5
WeightApprox. 4.8 kg
