43 582 руб.

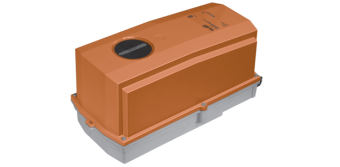

Артикул: GM230G-T
Наличие: По запросу.
В корзину
Отправить запрос
АртикулGM230G-T
Вспомогательные переключателиНет
КабельКлеммы 4 мм
Крутящий момент40 Нм
Питание24 В~/=
Площадь заслонки 8 м
ПрисоединениеУниверсальный захват
СерияGM_G
УправлениеОткр/Закр



Electrical data
Nominal voltageAC 100 ... 240 V, 50/60 Hz
Nominal voltage rangeAC 85 ... 265 V
Power consumption
In operation
At rest
For wire sizing

5 W @ nominal torque
2.5 W
9 VA
ConnectionTerminals 4 mm2 (cable 4 ... 10 mm)
Functional data
Torque (nominal torque)Min. 40 Nm @ nominal voltage
Direction of rotationReversible with switch 0 or 1, respectively
Manual overrideGearing latch disengaged with pushbutton, can be locked
Angle of rotationMax. 95°, can be limited at both ends with adjustable mechanical end stops
Running time150 s / 90°
Sound power levelMax. 45 dB (A)
Position indicationMechanical, pluggable
Safety
Protection classII Totally insulated
Degree of protection IP66 NEMA 4, UL Enclosure Type 4
EMC
Low-voltage directive
CE according to 2004/108/EC
CE according to 2006/95/EC
CertificationCertified to IEC/EN 60730-1 and IEC/EN 60730-2-14 cULus according to UL 60730-1 and UL 60730-2-14 and CAN/CSA E60730-1:02
Mode of operationType 1
Rated impulse voltage2.5 kV
Control pollution degree4
Ambient temperature–30 ... +50°C
Non-operating temperature–40 ... +80°C
Ambient humidity100% r.h.
MaintenanceMaintenance-free
Dimensions / Weight
DimensionsSee «Dimensions» on page 3
WeightApprox. 4.7 kg
