36 662 руб.

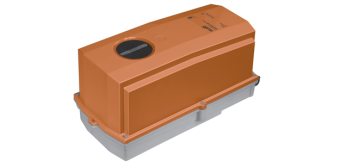

Артикул: SMQ24G-SR
Наличие: По запросу.
В корзину
Отправить запрос
АртикулSMQ24G-SR
Вспомогательные переключателиНет
Кабель1 м, 4 x 0.75 мм
Крутящий момент16 Нм
Питание24 В~/=
Площадь заслонки 3,2 м
ПрисоединениеУниверсальный захват
СерияSMQ_G
УправлениеПлавное 0…10 В= Рабочий диапазон 2…10 В=



Electrical data
Nominal voltageAC 24 V, 50/60 Hz / DC 24 V
Nominal voltage rangeAC 19.2 ... 28.8 V / DC 21.6 ... 28.8 V
Power consumption In operation
At rest
For wire sizing
15 W @ nominal torque

2 W
26 VA (lmax 20 A @ 5 ms)
ConnectionCable 1 m, 4 x 0.75 mm2
Functional data
Torque (nominal torque)Min. 16 Nm @ nominal voltage
Control Control signal Y
Operating range
DC 0 ... 10 V, input impedance 100 k
DC 2 ... 10 V
Position feedback(Measuring voltage) DC 2 ... 10 V, max. 0.5 mA
Position accuracy±5%
Direction of rotationReversible with switch 0 / 1
Direction of motion at Y = 0 VAt switch position 0 resp. 1
Manual overrideGearing latch disengaged with pushbutton, can be locked
Angle of rotationMax. 95° , can be limited at both ends with adjustable mechanical end stops
Angle of rotationlimiting min. 30°
Running time7 s / 90°
Automatic adjustment of operating range and measuring signal U to match the mechanical angle of rotationManual triggering of the adaption by pressing the «Adaption» button
Override controlMAX (maximum position)= 100%
MIN (minimum position)= 0%
ZS (intermediate position, only AC)= 50%
Sound power level63 dB (A)
Position indicationMechanical, pluggable
Negative torque !50% from nominal torque (Caution: can only be used with restrictions. Please contact your Belimo representative.)
Safety
Protection classIII Safety extra-low voltage UL Class 2 Supply
Degree of protectionIP66 NEMA 4, UL Enclosure Type 4
EMCCE according to 2004/108/EC
CertificationCertified to IEC/EN 60730-1 and IEC/EN 60730-2-14 cULus according to UL 60730-1A and UL 60730-2-14 and CAN/CSA E60730-1:02
Mode of operationType 1
Rated impulse voltage0.8 kV
Control pollutiondegree 4
Ambient temperature–30 ... +40°C (no restrictions) ! +50°C (Caution: can only be used with restrictions. Please contact your Belimo representative.)
Non-operating temperature–40 ... +80°C
Ambient humidity100% r.h.
MaintenanceMaintenance-free
Dimensions / Weight
DimensionsSee «Dimensions» on page 7
WeightApprox. 4,7 kg
