42 071 руб.

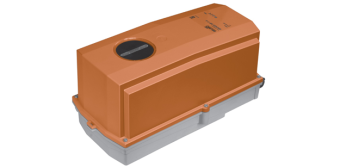

Артикул: SMQ24G
Наличие: По запросу.
В корзину
Отправить запрос
АртикулSMQ24G
Вспомогательные переключателиНет
Кабель1 м, 3 x 0.75 мм
Крутящий момент16 Нм
Питание24 В~/=
Площадь заслонки 3,2 м
ПрисоединениеУниверсальный захват
СерияSMQ_G
УправлениеОткр/Закр



Electrical data
Nominal voltageAC 24 V, 50/60 Hz / DC 24 V
Nominal voltage rangeAC 19.2 ... 28.8 V / DC 21.6 ... 28.8 V
Power consumption
In operation
At rest
For wire sizing

15 W @ nominal torque
2 W
26 VA (lmax 20 A @ 5 ms)
Connection Cable1 m, 3 x 0.75 mm2
Functional data
Torque (nominal torque)Min. 16 Nm @ nominal voltage
Direction of rotationReversible with switch 0 resp. 1
Manual overrideGearing latch disengaged with pushbutton, can be locked
Angle of rotationMax. 95° , can be limited at both ends with adjustable mechanical end stops
Angle of rotation limitingmin. 30°
Running time7 s / 90°
Automatic adjustment of operating range to match the mechanical angle of rotationManual triggering of the adaption by pressing the «Adaption» button
Sound power level63 dB (A)
Position indicationMechanical, pluggable
Negative torque !50% from nominal torque (Caution: can only be used with restrictions. Please contact your Belimo representative.)
Safety
Protection classIII Safety extra-low voltage UL Class 2 Supply
Degree of protectionIP66 NEMA 4, UL Enclosure Type 4
EMCCE according to 2004/108/EC
CertificationCertified to IEC/EN 60730-1 and IEC/EN 60730-2-14 cULus according to UL 60730-1A and UL 60730-2-14 and CAN/CSA E60730-1:02
Mode of operationType 1
Rated impulse voltage0.8 kV
Control pollution degree4
Ambient temperature–30 ... +40°C (no restrictions) ! +40 ... +50°C (Caution: can only be used with restrictions. Please contact your Belimo representative.)
Non-operating temperature–40 ... +80°C
Ambient humidity100% r.h.
MaintenanceMaintenance-free
Dimensions / Weight
DimensionsSee «Dimensions» on page 4
WeightApprox. 4.7 kg
