17 153 руб.

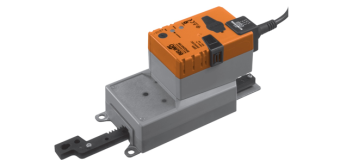

Артикул: SHQ24A100
Наличие: срок поставки 4 недели
В корзину
Отправить запрос


Вспомогательные переключателиНет
Кабель1 м, 3 x 0.75 мм
Крутящий момент200 Н
Питание24 В~/=
Площадь заслонки 1,3 м


Electrical data
Nominal voltageAC 24 V, 50/60 Hz / DC 24 V
Nominal voltage rangeAC 19.2 ... 28.8 V / DC 21.6 ... 28.8 V
Power consumption
In operation
At rest
For wire sizing
13 W @ nominal torque
2 W
23 VA (I max. 20 A @ 5 ms)
ConnectionCable 1 m, 3 x 0.75 mm2
Functional data
Actuating forceMin. 200 N @ nominal voltage
Direction of strokeReversible with switch 1 resp. 0
Manual overrideGearing latch disengaged with pushbutton, can be locked
Stroke adjustment40 ... 100 mm, adjustable in 20 mm-steps, can be limited at both ends with mechanical end stops
Stroke limitingMin. 40 mm
Running time7 s / 100 mm
Automatic adjustment of operating range to match the mechanical stroke adjustmentManual triggering of the adaption by pressing the «Adaption» button
Sound power level52 dB (A)
Negative torque !50% from nominal torque (Caution: can only be used with restrictions. Please contact your Belimo representative.)
Protection classIII Safety extra-low voltage UL Class 2 Supply
Degree of protectionIP54 in any mounting position NEMA 2, UL Enclosure Type 2
EMCCE according to 2004/108/EC
CertificationCertified to IEC/EN 60730-1 and IEC/EN 60730-2-14 cULus according to UL 60730-1A and UL 60730-2-14 and CAN/CSA E60730-1:02
Mode of operationType 1
Rated impulse voltage0.8 kV
Control pollution degree3
Ambient temperature!–30 ... +40°C (no restrictions) +40 ... +50°C (Caution: can only be used with restrictions. Please contact your Belimo representative.)
Non-operating temperature–40 ... +80°C
Ambient humidity95% r.H., non-condensating
Dimensions / Weight
DimensionsSee «Dimensions» on page 4
WeightApprox. 1.25 kg
