17 803 руб.

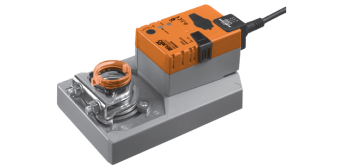

Артикул: SMQ24A
Наличие: в наличии.
В корзину
Отправить запрос
АртикулSMQ24A
Вспомогательные переключателиНет
Кабель1 м, 3 x 0.75 мм
Крутящий момент16 Нм
Питание24 В~/=
Площадь заслонки 3,2 м
ПрисоединениеУниверсальный захват
СерияSMQ
УправлениеОткр/Закр



Electrical data
Nominal voltageAC 24 V, 50/60 Hz / DC 24 V
Nominal voltage rangeAC 19.2 ... 28.8 V / DC 21.6 ... 28.8 V
Power consumption In operation
At rest
For wire sizing
12 W @ nominal torque
1.5 W
18 VA (I max. 20 A @ 5 ms)
ConnectionCable 1 m, 3 x 0.75 mm2
Functional data
Torque (nominal torque)Min. 16 Nm @ nominal voltage
Direction of rotationReversible with switch 0 resp. 1
Manual overrideGearing latch disengaged with pushbutton, can be locked
Angle of rotationMax. 95° , can be limited at both ends with adjustable mechanical end stops
Angle of rotation limitingmin. 30°
Running time7 s / 90°
Automatic adjustment of operating range to match the mechanical angle of rotationManual triggering of the adaption by pressing the «Adaption» button
Sound power level52 dB (A)
Position indicationMechanical, pluggable
Negative torque !50% from nominal torque (Caution: can only be used with restrictions. Please contact your Belimo representative.)
Safety
SafetyProtection class III Safety extra-low voltage / UL Class 2 Supply
Degree of protectionIP54 in any mounting position NEMA 2, UL Enclosure Type 2
EMCCE according to 2004/108/EC
CertificationcULus according to UL 60730-1A and UL 60730-2-14 and CAN/CSA E60730-1:02 Certified to IEC/EN 60730-1 and IEC/EN 60730-2-14
Mode of operationType 1 (EN 60730-1)
Rated impulse voltage0.8 kV (EN 60730-1)
Control pollution degree3 (EN 60730-1)
Ambient temperature !–30 ... +40°C (no restrictions) +40 ... +50°C (Caution: can only be used with restrictions. Please contact your Belimo representative.)
Non-operating temperature–40 ... +80°C
Ambient humidity95% r.H., non-condensating (EN 60730-1)
MaintenanceMaintenance-free
Dimensions / Weight
Dimensions.See «Dimensions» on page 3
WeightApprox. 1.7 kg
