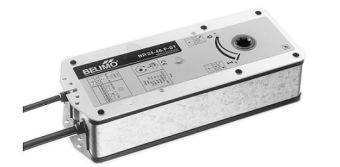

Привод BELIMO BR24-48-F-ST
- Описание
- Характеристики
- Отзывы
- Задать вопрос
-
Описание
Application
The type BR24-48-F-ST actuator is intended for the operation of smoke dampers in ventilation and air-conditioning systems.
Note
The modification and mounting of the actuator to the smoke damper are made by the manufacturer of the damper. For this reason the actuator is only supplied directly to fire and smoke damper manufacturers. The manufacturer then bears overall responsibility for proper functioning of the damper.
Signalling
There are two fixed microswitches in the actuator BR24-48-F-ST for indicating the end positions of the damper. Intermediate positions of the damper blade are shown by a mechanical indicator.
Manual operation
The damper can be operated manually by means of a crank handle. The functional check of the damper is therefore possible by simple means.
Important
The actuator BR24-48-F-ST is compatible with the control unit for pulse triggering BSIA24-48(-R).Документы
admm8a73so2pmkruk6rsfhc734tkwsgl Размер: 111,7 кб -
Характеристики
Технические характеристики Nominal voltage AC 24 ... 48 V 50/60Hz, DC 24 ... 48 V Nominal voltage range AC/DC 20.4 ... 57.6 V Fore wire sizing 15 ... 30 VA Power consumption 12 ... 24 W running / 1.5 ... 3 W at end position Cable type C2 Auxiliary switches 2 x SPDT 6 (3) A, AC 250 V - Switching points 5°, 80° Direction of rotation selected by mounting L / R Torque 15 Nm Angle of rotation 95° Damper rotation 12 mm form-fit Running time ‹ 30 s Sound power level 60 dB (A) Service life min. 10 000 operations Position indication mechanical with pointer EMC CE according 89/336/EEC and 92/31/EEC Maintenance maintenance-free Weight 2200 g Protection class III Degree of protection IP 54 Ambient temperature range - 30…+50°C Safe temperature - 30... + 70°C (24h guaranteed safety) Non-operating temperature - 40...+ 80°C Humidity test to EN 60335-1 Torque of stoppage min. 30 Nm (static) Connecting cable - Motor 1m long, 3 x 0.75mm2 (with plug 3 pole)
- Auxiliary switches 1m long, 6 x 0.75mm2 (with plug 3 pole) - Отзывы
-
