55 634 руб.

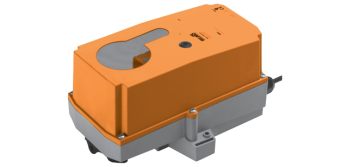

Артикул: NKQ24P-1
Наличие: по запросу.
В корзину
Отправить запрос
АртикулNKQ24P-2
Вспомогательные переключателиНет
Кабель1 м, 3 x 0.75 мм
Крутящий момент6 Нм
Питание24 В~/=
Площадь заслонки 1,2 м
ПрисоединениеУниверсальный захват
СерияNKQ_P
УправлениеОткр/Закр



Electrical data
Nominal voltageAC 24 V, 50/60 Hz / DC 24 V
Nominal voltage rangeAC 19.2 ... 28.8 V / DC 21.6 ... 28.8 V
Power consumption
In operation
At rest
For wire sizing

11 W @ nominal torque
3 W
22 VA (lmax 20 A @ 5 ms)
ConnectionHalogen-free cable 1 m, 3 x 0.75 mm2
Functional data
Torque
Inhibiting torque
6 Nm
6 Nm
Setting emergency position (POP)0 ... 100%, adjustable in increments of 10% (POP rotary button)
Position accuracy±5%
Direction of rotation Motor
Emergency setting position
Reversible with switch /
Reversible with switch 0 ... 100%,
Adjustable in increments of 10%
Direction of rotationeAt switch position 1 and 0, respectively
Manual overrideGearing latch disengaged with push button
Angle of rotationMax. 95°, can be limited at both ends with adjustable mechanical end stops
Angle of rotation limitingmin. 30°
Running time Motor
Emergency setting function

4 s / 90°
4 s @ 0 ... 50°C
Sound power level Motor
Emergency setting function
60 dB (A) @ 4 s running time
60 dB (A) @ 4 s running time
Position indicationMechanical, pluggable
Safety
Protection classIII Safety extra-low voltage
Degree of protectionIP66 + IP67
EMCCE according to 2004/108/EC
CertificationCertified to IEC/EN 60730-1 and IEC/EN 60730-2-14
Mode of operationType 1.AA
Rated impulse voltage0.8 kV
Control pollutiondegree 4
Ambient temperature–30 ... +50°C
Non-operating temperature–40 ... +80°C
Ambient humidity100% r.h.
MaintenanceMaintenance-free
Dimensions / Weight
Dimensionssee «Dimensions» on page 5
WeightApprox. 2 kg
