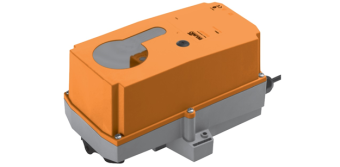

Привод BELIMO NKQ24P-MF
Артикул:
NKQ24P-MF
0 ₽
Нет в наличии
Нашли дешевле?
Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах
- Описание
- Характеристики
- Отзывы
- Задать вопрос
-
Описание
Документы
4srtm4q9wd87h0o0yc014loungirqvko Размер: 1,1 мб -
Характеристики
Технические характеристики Артикул NKQ24P-MF Вспомогательные переключатели Нет Кабель 1 м, 4 x 0.75 мм Крутящий момент 6 Нм Питание 24 В~/= Площадь заслонки 1,2 м Присоединение Универсальный захват Серия NKQ_P Управление Плавное 0…10 В= Рабочий диапазон 2…10 В= Настраивается Electrical data Nominal voltage AC/DC 24 V Nominal voltage frequency 50/60 Hz Nominal voltage range AC 19.2...28.8 V / DC 21.6...28.8 V Power consumption in operation 11 W Power consumption in rest position 3 W Power consumption for wire sizing 22 VA Power consumption for wire sizing note Imax 20 A @ 5 ms Connection supply / control Cable 1 m, 4 x 0.75 mm (halogen-free) Parallel operation Yes (note the performance data) Functional data Torque motor Min. 6 Nm Positioning signal Y DC 0...10 V Positioning signal Y note Input impedance 100 k Control signal Y variable Open-close Modulating (DC 0...32 V) Operating range Y DC 2...10 V Operating range Y variable Start point DC 0.5...30 V
End point DC 2.5...32 VPosition feedback U DC 2...10 V Position feedback U note Max. 0.5 mA Position feedback U variable Start point DC 0.5...8 V
End point DC 2.5...10 VEmergency setting position (POP) 0%, adjustable in increments of 10% (POP rotary knob on 0 corresponds to left end stop) Emergency setting position variable 0...100%, adjustable Bridging time (PF) 0 s Bridging time (PF) variable 0...5 s Position accuracy ±5% Direction of motion motor Selectable with switch 0 / 1 Direction of motion emergency control function Selectable with switch 0...100% Direction of motion note Y = 0 V: At switch position 0 (ccw rotation) / 1 (cw rotation) Direction of motion variable Electronically reversible Manual override Gear disengagement with push-button Angle of rotation Max. 95° Angle of rotation note can be limited on both sides with adjustable mechanical end stops Minimum angle of rotation Min. 30° Running time motor 4 s / 90° Motor running time variable 4...20 s Running time emergency control position 4 s / 90° Adaption setting range manual (automatic on first power-up) Adaption setting range variable No action Adaption when switched on Adaption after pushing the gear disengagement button Override control MAX (maximum position) = 100%
MIN (minimum position) = 0%
ZS (intermediate position, AC only) = 50%Override control variable MAX = (MIN + 32%)...100%
MIN = 0%...(MAX – 32%)
ZS = MIN...MAXSound power level motor 60 dB(A) Sound power level emergency control position 60 dB(A) Spindle driver Universal spindle clamp 10...20 mm Position indication Mechanically, pluggable Safety Protection class IEC/EN III Safety extra-low voltage Protection class UL UL Class 2 Supply Degree of protection IEC/EN IP66 + IP67 Degree of protection NEMA/UL NEMA 4, UL Enclosure Type 4 EMC CE according to 2004/108/EC Certification IEC/EN IEC/EN 60730-1 and IEC/EN 60730-2-14 Certification UL cULus according to UL 60730-1A, UL 60730-2-14 and CAN/CSA E60730-1:02 Mode of operation Type 1.AA Rated impulse voltage supply / control 0.8 kV Control pollution degree 4 Ambient temperature -30...50°C Non-operating temperature -40...80°C Ambient humidity 100% r.h. Maintenance Maintenance-free Weight Weight approx. 2.3 kg Terms Abbreviations POP = Power off position / emergency setting position
CPO = Controlled power off / controlled emergency control function
PF = Power fail delay time / bridging time - Отзывы
-
