43 160 руб.

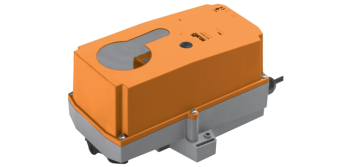

Артикул: NM230P-SR
Наличие: по запросу.
В корзину
Отправить запрос
АртикулNM230PSR
Вспомогательные переключателиНет
Кабель1 м, 2 x 0.75 мм / 1 м, 4 x 0.75 мм
Крутящий момент10 Нм
Питание230 В~
Площадь заслонки 2 м
ПрисоединениеУниверсальный захват
СерияNM_P
УправлениеПлавное 0…10 В= Рабочий диапазон 2…10 В=



Electrical data
Nominal voltageAC 100 ... 240 V, 50/60 Hz
Nominal voltage rangeAC 85 ... 265 V
Power consumption Operation
For wire sizing
3.5 W @ nominal torque / 1 W at rest
6.5 VA
Connection Power supply
Signals
Halogen-free cable 1 m, 2 x 0.75 mm2
Halogen-free cable 1 m, 4 x 0.75 mm2
Functional data
Torque (nominal torque)Min. 8 Nm @ nominal voltage
Control Control signal Y

Operating range
DC 2(0) ... 10 V, typical input impedance 100 k DC 2 ... 10 V
Position feedback (measuring voltage U)DC 2 ... 10 V, max. 1 mA
Auxiliary supplyDC 24 V ±30%, max. 10 mA
Position accuracy±5%
Direction of rotationReversible with switch 0 / 1
Direction of motion at Y = 0 VAt switch position 0 resp. 1
Manual overrideGearing latch disengaged with pushbutton, can be locked
Angle of rotationMax. 95° , can be limited at both ends with adjustable mechanical end stops
Running time150 s / 90°
Sound powerlevel Max. 35 dB (A)
Position indicationMechanical, pluggable
Safety
Protection classII totally insulated
Degree of protectionIP66 + IP67
EMC
Low-voltage directive
CE according to 2004/108/EC
CE according to 2006/95/EC
Mode of operationType 1 (EN 60730-1)
Rated impulse voltage2.5 kV (EN 60730-1)
Control pollution degree4 (EN 60730-1)
Ambient temperature–30 ... +50°C
Non-operating temperature–40 ... +80°C
Ambient humidity100% r.H.
MaintenanceMaintenance-free
Dimensions / Weight
DimensionsSee «Dimensions» on page 3
WeightApprox. 1.3 kg
