26 848 руб.

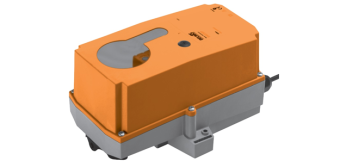

Артикул: SM24P-SR
Наличие: по запросу.
В корзину
Отправить запрос
АртикулSM24P-SR
Вспомогательные переключателинет
Кабель1 м, 4 x 0.75 мм
Крутящий момент20 Нм
Питание24 В~/=
Площадь заслонки 4 м
ПрисоединениеУниверсальный захват
СерияSM_P
УправлениеПлавное 0…10 В= Рабочий диапазон 2…10 В=



Electrical data
Nominal voltageAC/DC 24 V
Nominal voltage frequency50/60 Hz
Nominal voltage rangeAC 19.2...28.8 V / DC 19.2...28.8 V
Power consumption in operation2 W
Power consumption at rest0.4 W
Power consumption for wire sizing4 VA
Connection supply / controlCable 1 m, 4 x 0.75 mm (halogen-free)
Functional data
Torque motorMin. 20 Nm
Positioning signal YDC 0...10 V
Positioning signal Y noteTypical input impedance 100 k
Operating range YDC 2...10 V
Position feedback UDC 2...10 V
Position feedback Unote Max. 1 mA
Position accuracy±5%
Direction of rotation motorAs an option with switch 0 / 1
Running direction Y = 0 V:At switch position 0 (counter-clockwise rotation) / 1 (clockwise rotation)
Manual overrideGear disengagement with push-button, can be locked
Angle of rotationMax. 95°
Running time motor150 s / 90°
Sound power level motormax. 45 dB (A)
Spindle driverUniversal spindle clamp 14...20 mm
Position indicationMechanical, pluggable
Safety
Protection classIEC/EN III Safety extra-low voltage
Degree of protectionIEC/EN IP66 + IP67
EMCCE according to 2004/108/EC
Principle of operationType 1
Rated impulse voltage supply / control0.8 kV
Control pollution degree4
Ambient temperature-30°C ... 50°C
Non-operating temperature-40°C ... 80°C
Ambient humidity100% r.h.
MaintenanceMaintenance-free
Weight
WeightApprox. 1.55 kg
